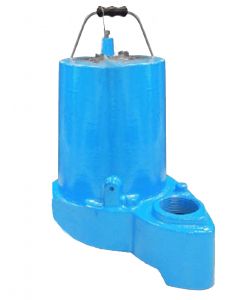

SVEN Series 1 HP 1 or 3 PH 230V 60 Hz 3450 RPM Effluent, Sump & Utility Pumps

SVEN Series 1 HP 1 or 3 PH 230V 60 Hz 3450 RPM Effluent, Sump & Utility Pumps

$389.57 USD
$606.00 USD $389.57 USD
Sale Sold out
Shipping calculated at checkout.
Phase

The SVEN Series 1 HP pumps are your go-to solution for efficient effluent, sump, and utility pumping applications. Crafted for reliability and optimal performance, these pumps excel in demanding environments. Whether you're managing wastewater, draining sumps, or addressing utility needs, the SVEN Series has you covered. With robust designs and advanced technology, these pumps stand up to the toughest pumping tasks.

One of the standout features of the SVEN series is its impressive discharge capability. With a 2" NPT vertical discharge, you can easily handle a variety of liquids. This feature is critical for ensuring efficient fluid transfer in both residential and commercial settings. Additionally, the pump can handle spherical solids up to 1.37" in diameter, allowing it to tackle challenging materials without clogs or interruptions.

Versatility is another key benefit of the SVEN Series. You have the option of selecting between 1-phase and 3-phase motors depending on your needs. This flexibility ensures that you can find the right pump for your specific application, whether you're working in a small space or a larger industrial setup.

When it comes to durability, the SVEN Series does not disappoint. It features an 8-vane semi-open vortex impeller made of Hytrel®, enhancing longevity and reducing maintenance needs. The shaft is constructed from 410 AISI stainless steel, ensuring it can withstand corrosive environments. This pump operates with a dry-type submersible motor that offers 115 or 230 V, running at 60 Hz and 3450 RPM. It has an Insulation Class B and IP68 protection class for added safety and reliability.

  1. Discharge: 2" NPT, vertical.
  2. Spherical solids handling: 1.37".
  3. HP: 0.5 & 1.
  4. RPM: 3450.
  5. Impeller: 8 vane, semi-open, vortex. Hytrel®.
  6. Shaft: 410 AISI stainless steel.
  7. Motor: Dry type submersible motor, 1 & 3 phase, 115 & 230 V, 60 Hz, 3450 RPM. Insulation Class B and IP68 protection class.

Data Sheet

User Manual
