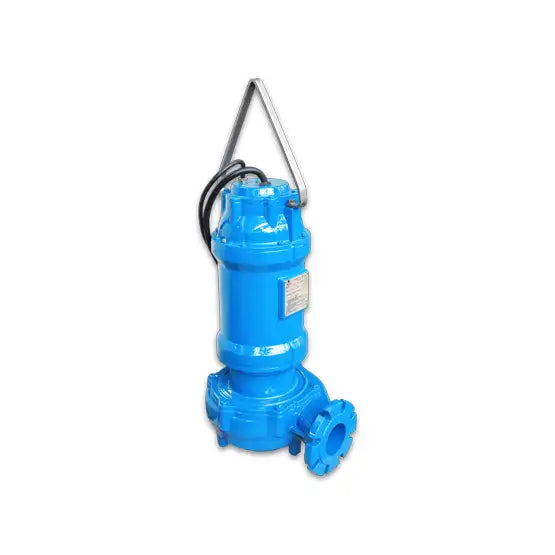

4" Discharge 208/230 & 460V 15-100HP Solid Handling Pump

Introducing the robust 4" Discharge 208/230 & 460V 15-100HP Solid Handling Pump, a standout solution for industrial applications that require efficient fluid handling. Designed with superior performance in mind, this pump is engineered to tackle the toughest challenges, making it ideal for environments where reliability and durability are paramount. Its innovative design ensures that you can manage solids effectively, allowing you to focus on your core tasks without worrying about pump performance.

The standout feature of this pump is its exceptional solids handling capability. With the ability to handle spherical solids up to 3 inches, it ensures efficient operation even in challenging conditions. Additionally, the pump is equipped with an enclosed mono vane impeller for the 4SWL and 4SWM models, while the 4SWH model utilizes a dual vane impeller. This design not only enhances performance but also helps in reducing wear and tear over time.

Another significant benefit is the motor's premium efficiency. The NEMA three-phase motor operates on 208/230 and 460 volts, and is oil-filled and squirrel cage induction-type, maximizing operational performance. This ensures you have access to unmatched power while also being energy efficient, reducing operational costs in the process.

Below are some additional specifications that highlight the pump's capabilities:

• Discharge Size: 4", horizontal flange, slotted for 100 mm ISO flange.
• Horsepower Range: 15-100 HP at 1750 RPM | 7.5-40 HP at 1150 RPM.
• Material: Ductile iron ASTM A-536, 65-45-12 ensures durability.
• Shaft Material: 416 series stainless steel for enhanced strength.
• Insulation Class: Class H insulation adds an extra layer of safety.

For detailed information on pump duty curves, voltage specifics, horsepower, and RPM data, refer to the data sheets linked below, and never hesitate to consult the user manual to maximize your use of this exceptional product:
