KTM Series 4" Discharge 15 HP 3 PH 60 Hz 230 or 460V 3450 Dewatering Pump
KTM Series 4" Discharge 15 HP 3 PH 60 Hz 230 or 460V 3450 Dewatering Pump
Regular price
$7,919.00 USD
Regular price
$0.00 USD
Sale price
$7,919.00 USD
Unit price
/
per
Efficiently draining water from flooded areas, construction sites, and underground spaces, this dewatering pump are common in industrial, municipal, and commercial settings to maintain dry and safe environments by preventing water damage and facilitating drainage. They are crucial for dewatering basements, excavations, utility vaults, swimming pools, and ponds, playing a pivotal role in effective water management and flood prevention.
- 2KTM202
- 2KTM203 / 204
- 2KTM303 / 304
- 3KTM503 / 504
- 3KTM753 / 754
- 4KTM1003 / 1004
- 4KTM1503 / 1504
- 4KTM2004
- 2AHS
2KTM202 series
Key features:
- Discharge: 2" vertical for hose coupling. Cast iron ASTM A-48 Class 30.
- HP: 2
- RPM: 3450
- Impeller: semi-open type, high chrome alloy.
- Shaft: 420 AISI stainless steel
- Motor: one phase induction motor, 230 V, 60 Hz, 3450 RPM. Insulation Class F and IP68 protection class.
2KTM203 / 204 series
Key features:
- Discharge: 2" vertical for hose coupling. Cast iron ASTM A-48 Class 30.
- HP: 2
- RPM: 3450
- Impeller: semi-open type, high chrome alloy.
- Shaft: 420 AISI stainless steel
- Motor: three-phase induction motor, 230 & 460 V, 60 Hz, 3450 RPM. Insulation Class F and IP68 protection class.
2KTM303 / 304 series
Key features:
- Discharge: 2" vertical for hose coupling. Cast iron ASTM A-48 Class 30.
- HP: 3
- RPM: 3450
- Impeller: semi-open type, high chrome alloy.
- Shaft: 420 AISI stainless steel
- Motor: three-phase induction motor, 230 & 460 V, 60 Hz, 3450 RPM. Insulation Class F and IP68 protection class.
3KTM503 / 504 series
Key features:
- Discharge: 3" vertical for hose coupling. Cast iron ASTM A-48 Class 30.
- HP: 5
- RPM: 3450
- Impeller: semi-open type, high chrome alloy.
- Shaft: 420 AISI stainless steel
- Motor: three-phase induction motor, 230 & 460 V, 60 Hz, 3450 RPM. Insulation Class F and IP68 protection class.
3KTM753 / 754 series
Key features:
- Discharge: 3" vertical for hose coupling. Cast iron ASTM A-48 Class 30.
- HP: 7.5
- RPM: 3450
- Impeller: semi-open type, high chrome alloy.
- Shaft: 420 AISI stainless steel
- Motor: three-phase induction motor, 230 & 460 V, 60 Hz, 3450 RPM. Insulation Class F and IP68 protection class.
4KTM1003 / 1004 series
Key features:
- Discharge: 4" vertical for hose coupling. Cast iron ASTM A-48 Class 30.
- HP: 10
- RPM: 3450
- Impeller: semi-open type, high chrome alloy.
- Shaft: 420 AISI stainless steel
- Motor: three-phase induction motor, 230 & 460 V, 60 Hz, 3450 RPM. Insulation Class F and IP68 protection class.
4KTM1503 / 1504 series
Key features:
- Discharge: 4" vertical for hose coupling. Cast iron ASTM A-48 Class 30.
- HP: 15
- RPM: 3450
- Impeller: semi-open type, high chrome alloy.
- Shaft: 420 AISI stainless steel
- Motor: three-phase induction motor, 230 & 460 V, 60 Hz, 3450 RPM. Insulation Class F and IP68 protection class.
4KTM2004 series
Key features:
- Discharge: 4" vertical for hose coupling. Cast iron ASTM A-48 Class 30.
- HP: 20
- RPM: 3450
- Impeller: semi-open type, high chrome alloy.
- Shaft: 420 AISI stainless steel
- Motor: three-phase induction motor, 230 & 460 V, 60 Hz, 3450 RPM. Insulation Class F and IP68 protection class.

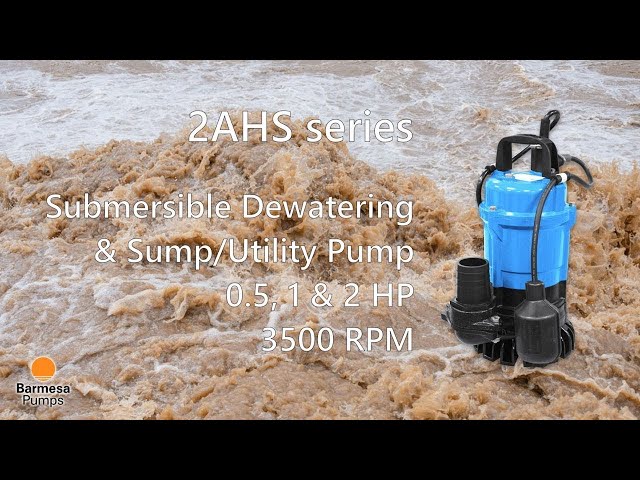

2AHS series
Key features:
- Discharge: 2" NPT, vertical.
- Spherical solids handling: 1/4"
- HP: 0.5, 1 & 2
- RPM: 3450
- Impeller: 8 vane, open, semi-vortex. Hytrel® thermoplastic elastomer.
- Shaft: 410 series stainless steel
- Motor: dry type submersible motor, 1 & 3 phase, 115 & 230 V, 60 Hz, 3500 RPM. For continuous duty, with thermal protector IP68 in winding, insulation Class B.
