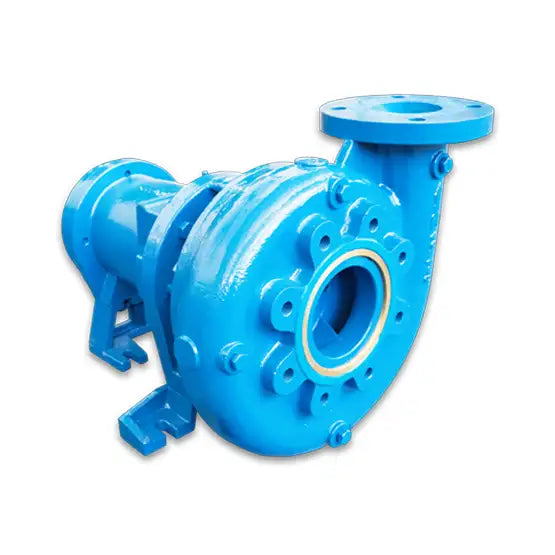

BES3040CU9 3" x 4" End-Suction Centrifugal Pump - Heavy-Duty, Flexible Piping, Cast Iron Body

Experience the unmatched performance of the BES3040CU9 3" x 4" Suction/Discharge End-Suction Centrifugal Frame Mounted Pump. This powerhouse is engineered for high-efficiency fluid handling in industrial applications. With its sturdy design and advanced features, this pump stands out in any challenging environment.

The BES3040CU9 showcases an innovative end-suction design, making installation and maintenance a breeze. Weighing 254 lbs, this pump boasts a robust cast iron body and pedestal, constructed from ASTM A-48, class 30 materials. This means you can count on its durability and longevity, even under the most demanding operational conditions.

Whether you need to handle liquids at high temperatures or tackle rugged applications, the BES3040CU9 can rise to the occasion. It excels at managing liquids with a maximum temperature of 225°F (107°C), making it versatile enough for various tasks.

Key features of this end-suction centrifugal pump include:

1. Flexible Piping Arrangements: This pump is equipped with a 4" 125 lb. ANSI flange for suction and a 3" 125 lb. ANSI flange for discharge. The design enables the placement of pipes in four distinct configurations, catering to your specific installation needs.
2. Durable and High-Quality Components: The enclosed impeller design is dynamically balanced to ISO G6.3 standards. It can manage maximum spheres of up to 0.75 inches, ensuring smooth operation. Additionally, the impeller is crafted from premium 304 stainless steel, while the shaft and sleeve are made of stainless steel and bronze, respectively.

Beyond power, the BES3040CU9 emphasizes user-friendliness. It features a back pull-out design that simplifies access for repairs and maintenance. You can quickly remove both suction and discharge piping without hassle, enabling you to save time during service.

For maintenance peace of mind, the pump incorporates grease-lubricated single-row ball bearings on both ends. Reliability is further enhanced through a mechanical seal constructed from carbon, Ni-Resist, and Buna-N materials to prevent leaks and ensure consistent operation.

Upgrade your fluid handling capabilities with the BES3040CU9 3" x 4" Suction/Discharge End-Suction Centrifugal Frame Mounted Pump. Whether you are working in industrial processes or specific applications, this pump guarantees exceptional durability, performance, and versatility.

For full specifications, consider the following:

1. Weight: 254 lbs
2. Maximum Liquid Temperature: 225°F (107°C)
3. Impeller Material: 304 Stainless Steel
4. Body Material: Cast Iron (ASTM A-48, class 30)

To learn more and access additional details, check out the pump's data sheet and user manual.
