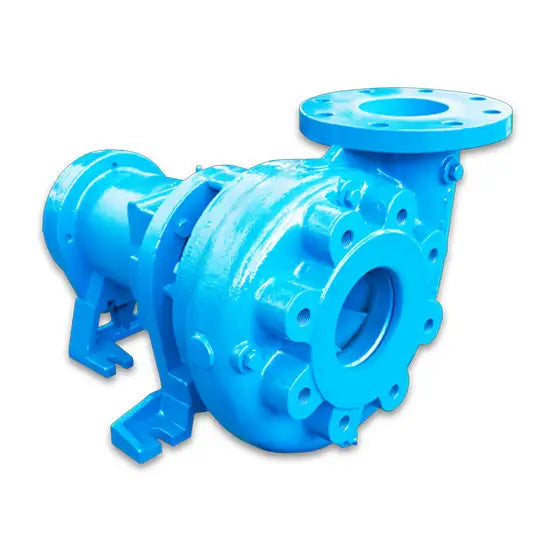

BES3050CU9 5" x 4" End Suction Centrifugal Pumps - Reliable, Durable, High-Performance Fluid Transfer

Discover the power and efficiency of the BES3050CU9 5" x 4" Suction/Discharge End-Suction Centrifugal Frame Mounted Pumps, designed to tackle a variety of fluid handling challenges. These end suction centrifugal pumps are built for both performance and durability, making them a valuable addition to your industrial toolkit.

The BES3050CU9 excels in fluid transfer efficiency thanks to its thoughtfully engineered end-suction mechanism. This design minimizes turbulence and maximizes flow rates, ensuring your operations run smoothly and effectively. Whether you're dealing with water, chemicals, or other liquids, this pump can handle temperatures up to 180 °F (82 °C), making it suitable for even the most demanding environments.

Constructed from high-quality cast iron ASTM A-48, class 30, the BES3050CU9 is built to last. This robust material ensures the pump withstands heavy usage while maintaining structural integrity. Additionally, it features air vent, vacuum pressure, and drain plugs that facilitate routine maintenance, helping you keep your operations streamlined.

1. Flexible Installation: The pump can be installed in eight different orientations, enabling you to adapt it to your existing piping setup easily.
2. Durable Components: The enclosed impeller is made from dynamic 304 stainless steel, while the mechanical seal system provides excellent leak protection, ensuring reliable performance.

This powerful pump weighs in at 254 lbs (115.2 kg), providing powerful stability during operation. The double-row ball bearings at the drive end and single-row ones on the pump end come pre-greased from the factory, ensuring a hassle-free setup right from the start.

Elevate your pumping solutions with the reliability and efficiency of the BES3050CU9. Whether you're a professional in the field or a DIY enthusiast, this pump has everything you need for successful fluid transfer. For detailed specifications, please refer to the accompanying documentation.

1. Dimensions: 5" x 4"
2. Weight: 254 lbs (115.2 kg)
3. Material: Cast Iron ASTM A-48, class 30
4. Temperature Range: Up to 180 °F (82 °C)
